Concentrated Solar Power

Concentrated Solar Power (CSP) is a groundbreaking innovation in the renewable energy sector, offering a powerful way to convert sunlight into electricity. This article explores how CSP works, its various technologies, and its role in shaping a sustainable energy future. Whether you're an energy enthusiast or just curious about this cutting-edge technology, we’ll break it down in simple terms and highlight its benefits, challenges, and potential for the future.

Key Takeaways

• CSP uses mirrors to concentrate sunlight, converting it into heat that generates electricity. It’s a reliable and scalable renewable energy solution.
• It offers consistent power output, can be combined with other energy sources, and helps reduce carbon emissions.
• However, high costs, water usage, and geographical limitations are some of the main challenges facing CSP.

How Do Concentrated Solar Power Systems Work?

CSP systems focus sunlight using mirrors onto a receiver, which heats up a fluid. That fluid then produces steam to drive a turbine, generating electricity. Some systems also store thermal energy, allowing them to provide power even when the sun isn’t shining.

This ability to store energy makes CSP a more stable option compared to solar PV, which relies solely on direct sunlight. By integrating with other power sources, CSP can support grid stability and contribute to a cleaner energy mix.

Four Categories of CSP Technology

Parabolic Trough Systems: These use curved mirrors to focus sunlight onto a pipe filled with a heat transfer fluid, which is then used to generate steam.

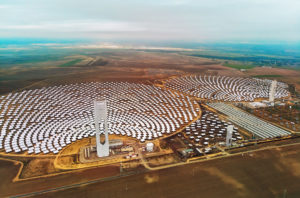

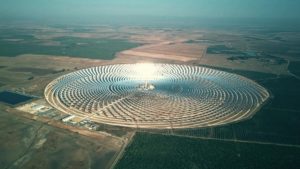

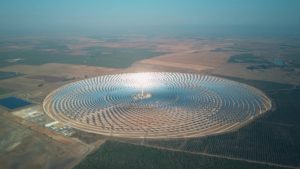

Power Tower Systems: Thousands of mirrors, called heliostats, track the sun and focus light onto a central tower where the heat is used to produce steam.

Linear Fresnel Systems: These systems use flat mirrors arranged in a linear fashion to focus sunlight onto a series of tubes above them, similar to parabolic troughs but often more cost-effective.

Parabolic Dish Systems: These are highly efficient, using a dish-shaped mirror to concentrate sunlight onto a receiver at the focal point, often paired with a Stirling engine to generate electricity.

Benefits of Concentrated Solar Energy

CSP offers several advantages over traditional solar and other renewables:

• CSP is a clean, renewable energy source that can operate continuously, thanks to thermal storage capabilities.
• It can be integrated with existing power plants, making it a flexible option for hybrid energy systems.
• CSP has the potential to significantly reduce carbon emissions and improve air quality, contributing to a healthier environment.
• It can be used in remote areas, providing power where traditional infrastructure is lacking.
• CSP technology is adaptable and can be scaled to meet different energy demands, from small-scale applications to large utility projects.

Drawbacks of Concentrated Solar Power System

Despite its benefits, CSP also comes with some challenges:

• CSP requires a lot of land and specific geographic conditions, such as high solar irradiation, making it unsuitable for densely populated areas.
• The system uses a significant amount of water for cooling, which can be problematic in arid regions.
• High initial investment and maintenance costs can make CSP less attractive compared to other renewable options like solar PV.
• Efficiency can drop during cloudy or low-light conditions, although thermal storage helps mitigate this issue.
• CSP technology is still evolving, and there are ongoing efforts to improve efficiency and reduce costs.

What is the Efficiency of Concentrated Solar Energy?

The efficiency of CSP varies depending on the technology and operating conditions. On average, CSP plants operate between 7% and 25%. This is lower than the efficiency of wind or hydropower, but higher than many other renewable sources.

Advancements in materials and design are helping to increase efficiency, and thermal storage allows CSP to provide power even when the sun isn’t shining. This makes it a valuable complement to other renewable energy sources.

Where Does Concentrated Solar Power Come into Play?

CSP is being deployed in countries with high solar potential, such as Spain, Morocco, and the United States. For example, Spain has the world’s largest CSP installations, while Morocco's Noor Ouarzazate complex is one of the most advanced projects globally.

In the U.S., the Ivanpah Solar Electric Generating System is one of the largest CSP plants, producing enough electricity to power tens of thousands of homes. As the technology improves and costs decrease, CSP is expected to play a bigger role in the global energy mix.

What Role Does Concentrated Solar Energy Play in the Future?

With growing concerns about climate change and the need for sustainable energy solutions, CSP is gaining attention as a viable alternative to fossil fuels. Its ability to store energy and provide consistent power makes it especially valuable in a renewable-heavy energy grid.

While it faces challenges like high costs and water usage, ongoing research and development are helping to address these issues. As the world moves toward a greener future, CSP could become a key player in the transition to clean, reliable energy.

Expert Insights From Our Solar Panel Installers About Concentrated Solar Power

CSP is a game-changer in the renewable energy space. It provides a steady and predictable energy supply, which is crucial for grid stability and long-term planning.

Renewable Energy Specialist

CSP can be easily integrated with existing infrastructure, making it a smart choice for transitioning to cleaner energy without disrupting current operations.

Environmental Engineer

Although CSP is promising, it needs more investment and policy support to become more competitive with other renewables. As the technology advances, I believe CSP will become a major player in the energy sector.

Energy Policy Analyst

Discover the Power of Solar with Solar Panels Network

If you’re looking to harness the sun’s energy, Solar Panels Network is here to help. We specialize in providing high-quality solar solutions tailored to your needs, whether you're a homeowner or a business owner. With our expert team and commitment to sustainability, we ensure that you get the best value from your solar investment. Contact us today to start your journey towards a cleaner, more affordable energy future.

Conclusion

Concentrated Solar Power is a powerful and innovative approach to generating electricity from the sun. By using mirrors to focus sunlight and convert it into heat, CSP systems can provide reliable, clean energy. While it has its challenges, the technology holds great promise for the future of renewable energy.

Whether you're interested in learning more about CSP or considering a solar installation, understanding how this technology works can help you make informed decisions about your energy needs. As the world continues to shift toward sustainable energy, CSP is set to play an important role in shaping a cleaner, brighter future.
